magmadnn::op::Conv2DForwardOp< T > Class Template Reference
Inheritance diagram for magmadnn::op::Conv2DForwardOp< T >:
Inheritance graph
[legend]
Collaboration diagram for magmadnn::op::Conv2DForwardOp< T >:
Collaboration graph
[legend]

Public Member Functions

 Conv2DForwardOp (Operation< T > *input, Operation< T > *filter, int pad_h=0, int pad_w=0, int vertical_stride=1, int horizontal_stride=1, int dilation_h=1, int dilation_w=1, bool use_cross_correlation=true, bool needs_grad=true)

std::string to_string ()

- Public Member Functions inherited from magmadnn::op::Operation< T >
 Operation ()

 Operation (std::vector< Operation< T > *> inputs, bool needs_grad=true)

virtual std::vector< unsigned int > get_output_shape () const

virtual unsigned int get_output_shape (unsigned int idx) const

virtual unsigned int get_output_size () const

virtual memory_t get_memory_type () const

virtual Tensor< T > * eval (bool recompute=true)

virtual void reset ()

virtual Tensor< T > * grad (Operation< T > *consumer, Operation< T > *var, Tensor< T > *grad, bool recompute=true)

virtual void add_consumer (Operation< T > *consumer)

virtual std::vector< Operation< T > * > get_consumers ()

virtual std::vector< Operation< T > * > get_inputs ()

virtual Tensor< T > * get_output_tensor ()

virtual Tensor< T > * get_grad_tensor (Operation< T > *wrt)

virtual std::string get_name ()


Protected Member Functions

Tensor< T > * _eval (bool recompute)

Tensor< T > * _grad (Operation< T > *consumer, Operation< T > *var, Tensor< T > *grad)

void init_settings ()

void calculate_and_set_output_shape ()


Protected Attributes

Operation< T > * input

Operation< T > * filter

Tensor< T > * input_tensor

Tensor< T > * filter_tensor

int pad_h

int pad_w

int vertical_stride

int horizontal_stride

int dilation_h

int dilation_w

bool use_cross_correlation

- Protected Attributes inherited from magmadnn::op::Operation< T >
std::vector< Operation< T > * > inputs

std::vector< Operation< T > * > consumers

std::vector< unsigned int > output_shape

memory_t mem_type

std::map< uintptr_t, Tensor< T > * > _grad_cache

std::string name = "DefaultOpName"

Tensor< T > * output_tensor

bool needs_grad

bool has_been_computed

bool has_grad_been_computed


Member Function Documentation

◆ _eval()

template<typename T >
Tensor< T > * magmadnn::op::Conv2DForwardOp< T >::_eval ( bool  recompute)
protectedvirtual

Sets this->output_tensor to the value of this operation

Returns
Tensor<T>* the evaluated tensor

Implements magmadnn::op::Operation< T >.

Here is the caller graph for this function:

◆ _grad()

template<typename T >
Tensor< T > * magmadnn::op::Conv2DForwardOp< T >::_grad ( Operation< T > *  consumer,
Operation< T > *  var,
Tensor< T > *  grad
)
protectedvirtual

Computes the gradient of this operation wrt the output of consumer.

Parameters
consumer
var
grad
recompute
Returns
Tensor<T>*

Implements magmadnn::op::Operation< T >.

Here is the caller graph for this function:

◆ to_string()

template<typename T>
std::string magmadnn::op::Conv2DForwardOp< T >::to_string ( )
inlinevirtual

string form of the given operation. Expands on input.

Returns
std::string

Implements magmadnn::op::Operation< T >.

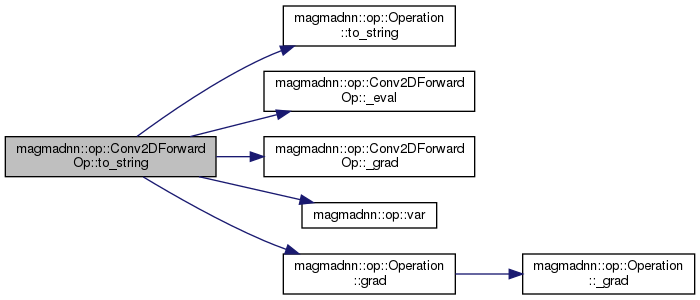

Here is the call graph for this function:
The documentation for this class was generated from the following files:
