conv2dlayer.cpp File Reference

#include "layer/conv2d/conv2dlayer.h"

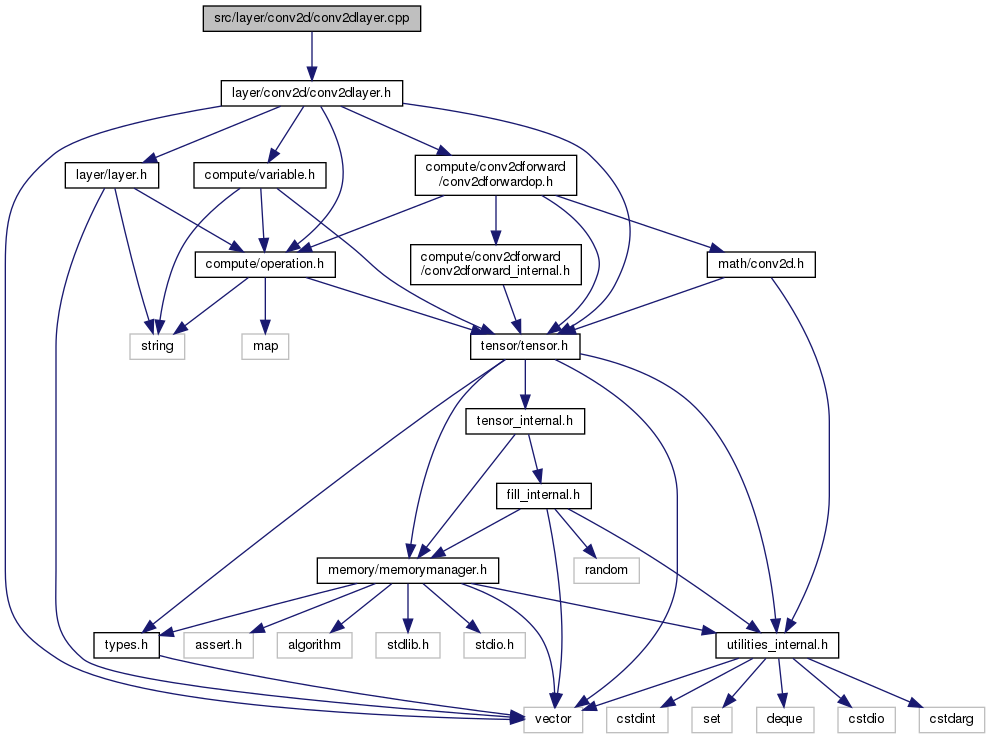

Include dependency graph for conv2dlayer.cpp:

Functions
template<typename T >
Conv2dLayer< T > *	magmadnn::layer::conv2d (op::Operation< T > *input, const std::vector< unsigned int > &filter_shape, int out_channels, const std::vector< unsigned int > &padding, const std::vector< unsigned int > &strides, const std::vector< unsigned int > &dilation_rates, bool use_cross_correlation, bool use_bias, tensor_filler_t< T > filter_initializer, tensor_filler_t< T > bias_initializer)
template Conv2dLayer< int > *	magmadnn::layer::conv2d (op::Operation< int > *, const std::vector< unsigned int > &, int, const std::vector< unsigned int > &, const std::vector< unsigned int > &, const std::vector< unsigned int > &, bool, bool, tensor_filler_t< int >, tensor_filler_t< int >)
template Conv2dLayer< float > *	magmadnn::layer::conv2d (op::Operation< float > *, const std::vector< unsigned int > &, int, const std::vector< unsigned int > &, const std::vector< unsigned int > &, const std::vector< unsigned int > &, bool, bool, tensor_filler_t< float >, tensor_filler_t< float >)
template Conv2dLayer< double > *	magmadnn::layer::conv2d (op::Operation< double > *, const std::vector< unsigned int > &, int, const std::vector< unsigned int > &, const std::vector< unsigned int > &, const std::vector< unsigned int > &, bool, bool, tensor_filler_t< double >, tensor_filler_t< double >)
template<typename T >
Conv2dLayer< T > *	magmadnn::layer::conv2d (op::Operation< T > *input, const std::vector< unsigned int > &filter_shape, int out_channels, padding_t padding, const std::vector< unsigned int > &strides, const std::vector< unsigned int > &dilation_rates, bool use_cross_correlation, bool use_bias, tensor_filler_t< T > filter_initializer, tensor_filler_t< T > bias_initializer)
template Conv2dLayer< int > *	magmadnn::layer::conv2d (op::Operation< int > *, const std::vector< unsigned int > &, int, padding_t, const std::vector< unsigned int > &, const std::vector< unsigned int > &, bool, bool, tensor_filler_t< int >, tensor_filler_t< int >)
template Conv2dLayer< float > *	magmadnn::layer::conv2d (op::Operation< float > *, const std::vector< unsigned int > &, int, padding_t, const std::vector< unsigned int > &, const std::vector< unsigned int > &, bool, bool, tensor_filler_t< float >, tensor_filler_t< float >)
template Conv2dLayer< double > *	magmadnn::layer::conv2d (op::Operation< double > *, const std::vector< unsigned int > &, int, padding_t, const std::vector< unsigned int > &, const std::vector< unsigned int > &, bool, bool, tensor_filler_t< double >, tensor_filler_t< double >)

Detailed Description

Author

Daniel Nichols

Version

1.0

Date

2019-07-08

Copyright

Copyright (c) 2019

Function Documentation

conv2d()

template<typename T >

Conv2dLayer< T > * magmadnn::layer::conv2d	(	op::Operation< T > *	input,
		const std::vector< unsigned int > &	filter_shape = {3, 3},
		int	out_channels = 1,
		const std::vector< unsigned int > &	padding = {0, 0},
		const std::vector< unsigned int > &	strides = {1, 1},
		const std::vector< unsigned int > &	dilation_rates = {1, 1},
		bool	use_cross_correlation = true,
		bool	use_bias = false,
		tensor_filler_t< T >	filter_initializer = {GLOROT,{0.0, 0.2f}},
		tensor_filler_t< T >	bias_initializer = {GLOROT,{0.0, 0.2f}}
	)

Create a Conv2d Layer. Computes the output on the GPU. Uses CuDNN. No host functionality.

Template Parameters

T

numeric

Parameters

input	the input data; must be a 4D tensor in format NCHW (N-batch, C-Channel, H-height, W-Width)
filter_shape	shape of the convolution kernel. must be a 2 dimensional vector; defaults to {3,3}
out_channels	number of output filters; defaults to 1
padding	the padding size to use. must be a two dimensional vector; defaults to {0,0}
strides	striding of convolution. must be a two dimensional vector; defaults to {1,1}
dilation_rates	rate of dilation. must be a two dimensional vector; defaults to {1,1}
use_cross_correlation	whether to do a cross correlation convolution or standard convolution; defaults to cross correlation
use_bias	use convolutional bias or not; defaults to false
filter_initializer	how to initialize the filter tensor; defaults to {GLOROT,{0.0f,0.2f}}
bias_initializer	how to initialize the bias tensor; defaults to {GLOROT, {0.0f,0.2f}}

Returns

Conv2dLayer<T>* a new layer
